Items/Model |
TS30 PLC |
|
Principle |
Waste Incineration |
|
Burn Rate |
Average 30kgs/hour |
|
Fuel Type |
Diesel Oil/Natural Gas |
|
Control Mode |

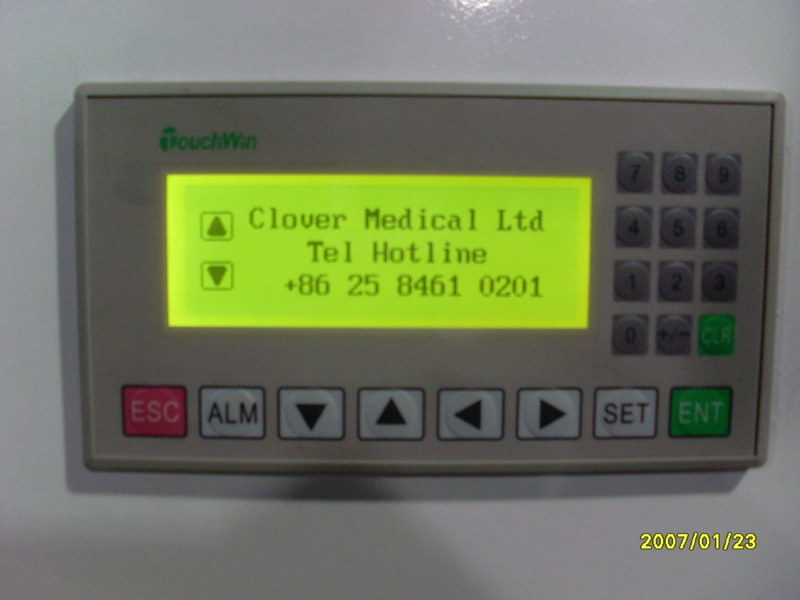

Programmable Logic Controller(PLC) Panel |
|
Primary Combustion Chamber |
0.33 m3 |
|
Internal Dimensions(Primary) |
750x750x600 mm |
|
Secondary Combustion Chamber |
0.18 m3 |
|
Internal Dimensions(Secondary) |
400 x 750 x 600 mm |
|
Smoke Filter Chamber |
Yes |
|
Feed Mode |
Manual |
|
Voltage |
220V |
|
Power |
0.5Kw |
|
Oil Consumption |
10.2―20.0 kgs/hour |
|
Gas Consumption |
9.8―20.0 m3/hour |
|
Temperature Monitor |
Digital Display |
|
Temperature Protection |
PLC Control |
|
Time Setting |
PLC Control, 0-120 Minutes |
|
Oil Tank |
100 Liters |
|
Waste Feed Door |
550x500mm |
|
Chimney |
5.0 Meter |
|
Chimney Type |
Stainless Steel |
|
Primary Chamber Temperature |
800℃–1000℃ |
|
Secondary Chamber Temperature |
1000℃-1200℃ |
|
Residency Time |
2.0 Sec. |
|
Gross Weight |
3000kgs |
|
External Dimensions |
1750x1200x1400 mm |
